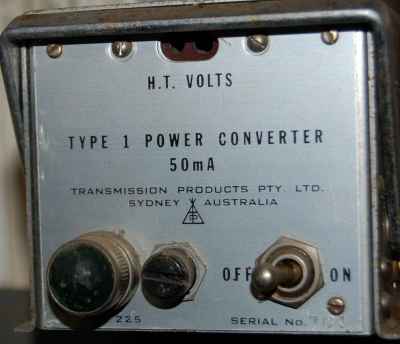

Transmission Products Type 1 Power Conditioner
Output 240V DC @ 50mA and 6.3V @ 2.5A.

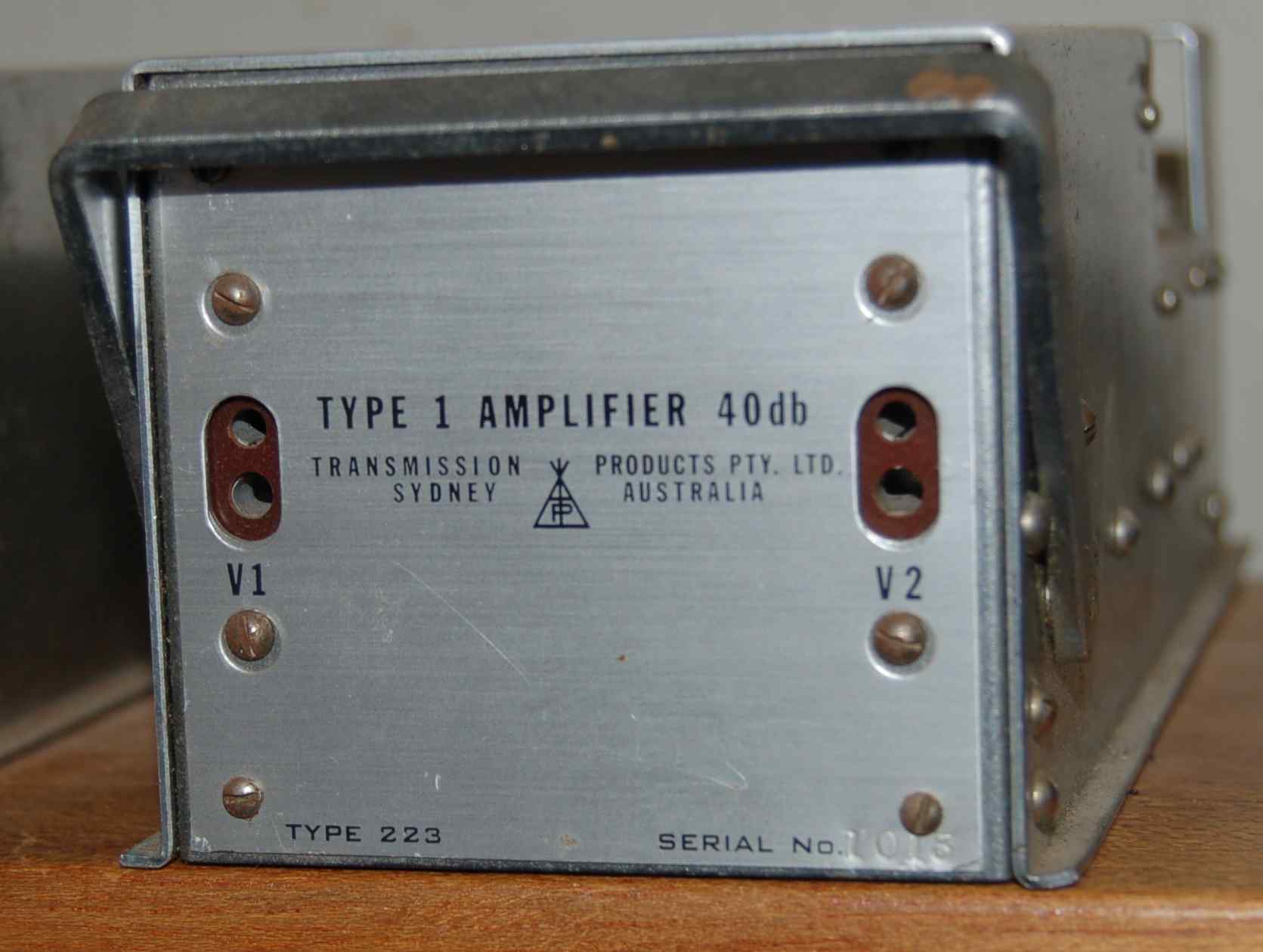

Transmission Products Type 1 Amplifier
PMG / ABC Specification Type 1 Amp
40dB pre-amplifier, input impedance 50 or 600 ohms, +21dBm output @ 2% distortion into 600 ohms, Valve complement 1 x EF86 and 1 x 6AQ5.

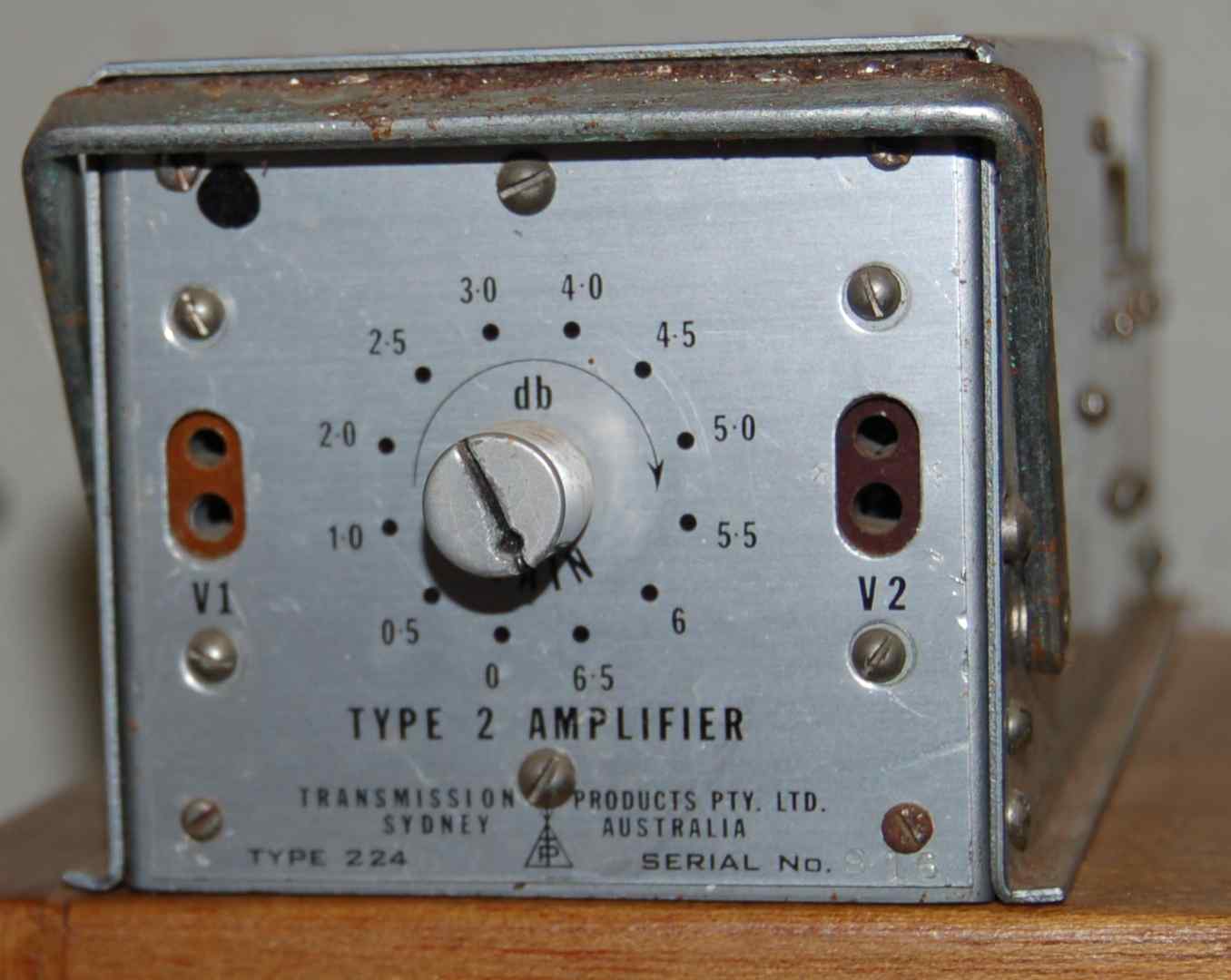

Transmission Products Type 2 Amplifier
PMG / ABC Specification Type 2 Amp
0-6.5dB pre-amplifier, adjustable in 0.5dB steps, Input impedance 25,000 ohms, +27dBm output @ 2% distortion into 600 ohms, Valve complement 1 x 12AU7.
