Magnet Winding Wire Table

This is a little wire gauge table made by Rola of the form of a ruler, a little promotional give-away. It uses a simple diffraction grating two images can be viwed, one at a time depending on the viewing angle.

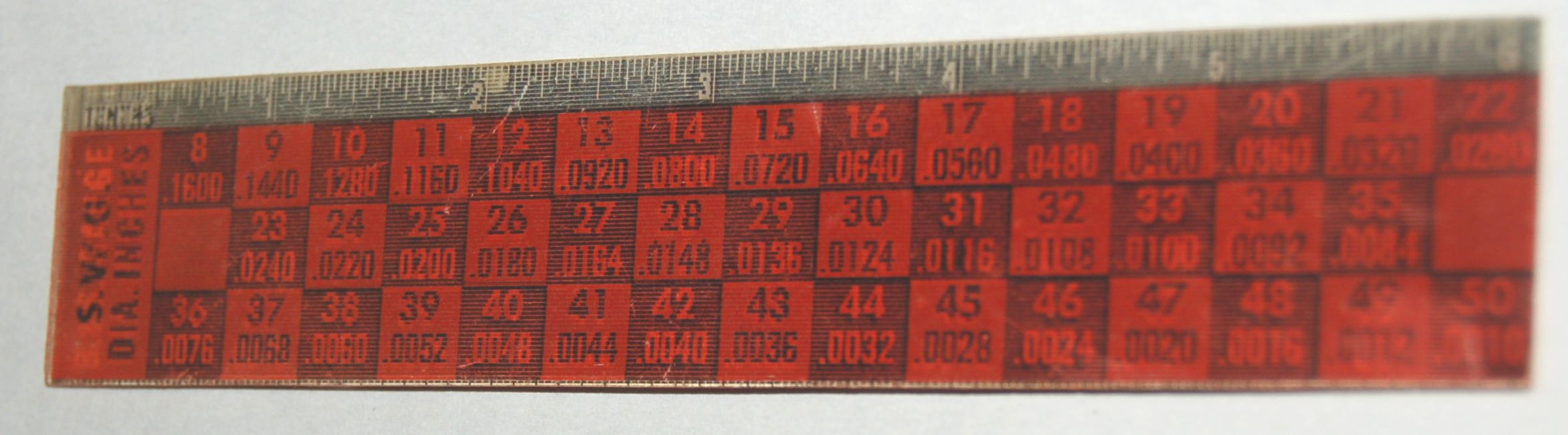

The first table is Standard Wire Gauge (S.W.G.) number with the wire diamter in inches and the ruler measures down to 1/32"

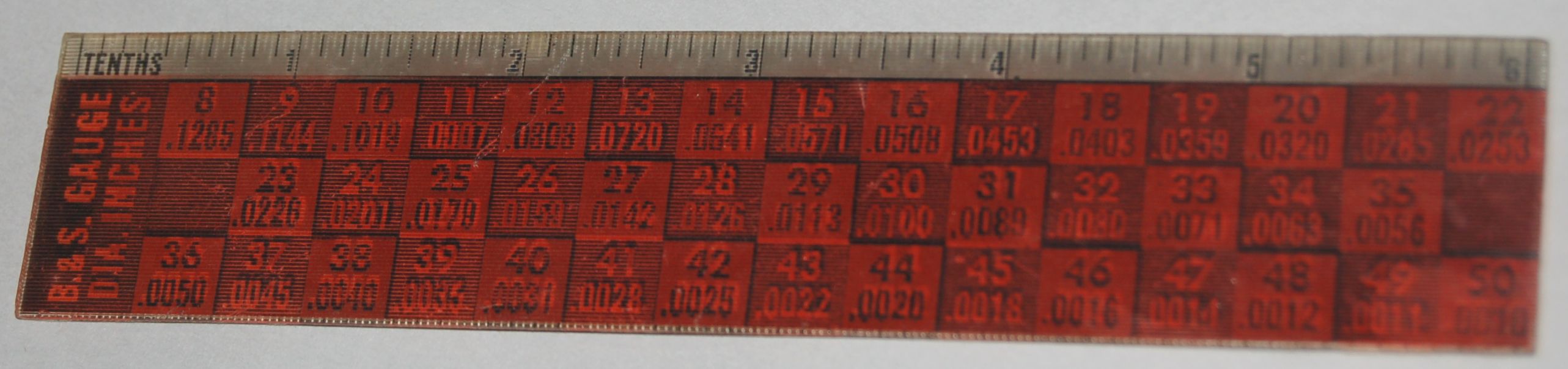

This shows B. & S. Gauge number with the wire diamter in inches and the ruler measures down to 1/10"

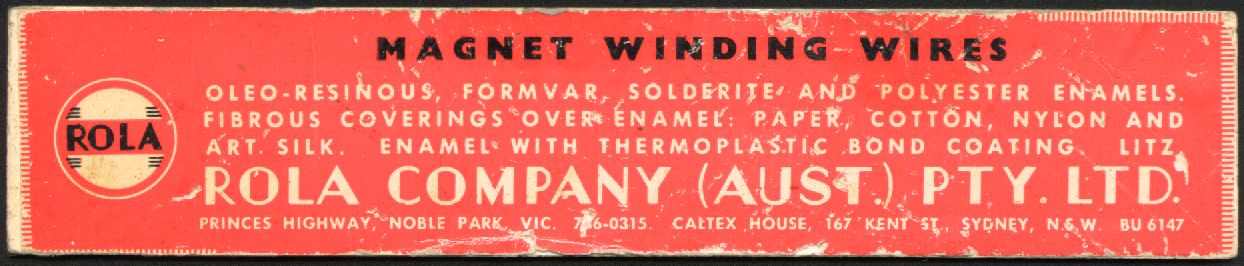

The back of the ruler lists the wire types available.
