This was taken from a ROLA Technical Data Sheet.

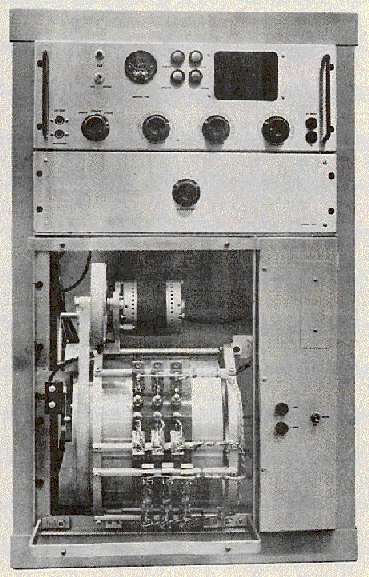

- ROLA LIFT ANNOUNCEMENT UNIT - This unit provides announcementservice in unattended lifts used in Department Stores, Hotels, etc. for floor identification. The mechanical construction is for heavy duty operation. All bearings fitted with ball and the drive belts are treated Dacron. The Recording Medium is a neoprene band impregnated with Iron Oxide lubricated with oil to insure exceptionally long Replay/Record Head Life. |
Number of Channels - up to 24.
The message length is 15 seconds.
Cnannel announcements triggered as the lift approaches the corresponding floor.
Inbuilt monitoring amplifier and speaker with independent Record/Replay and Monitoring Controls.
Play/Safe operation including Manual or automatic operation.
