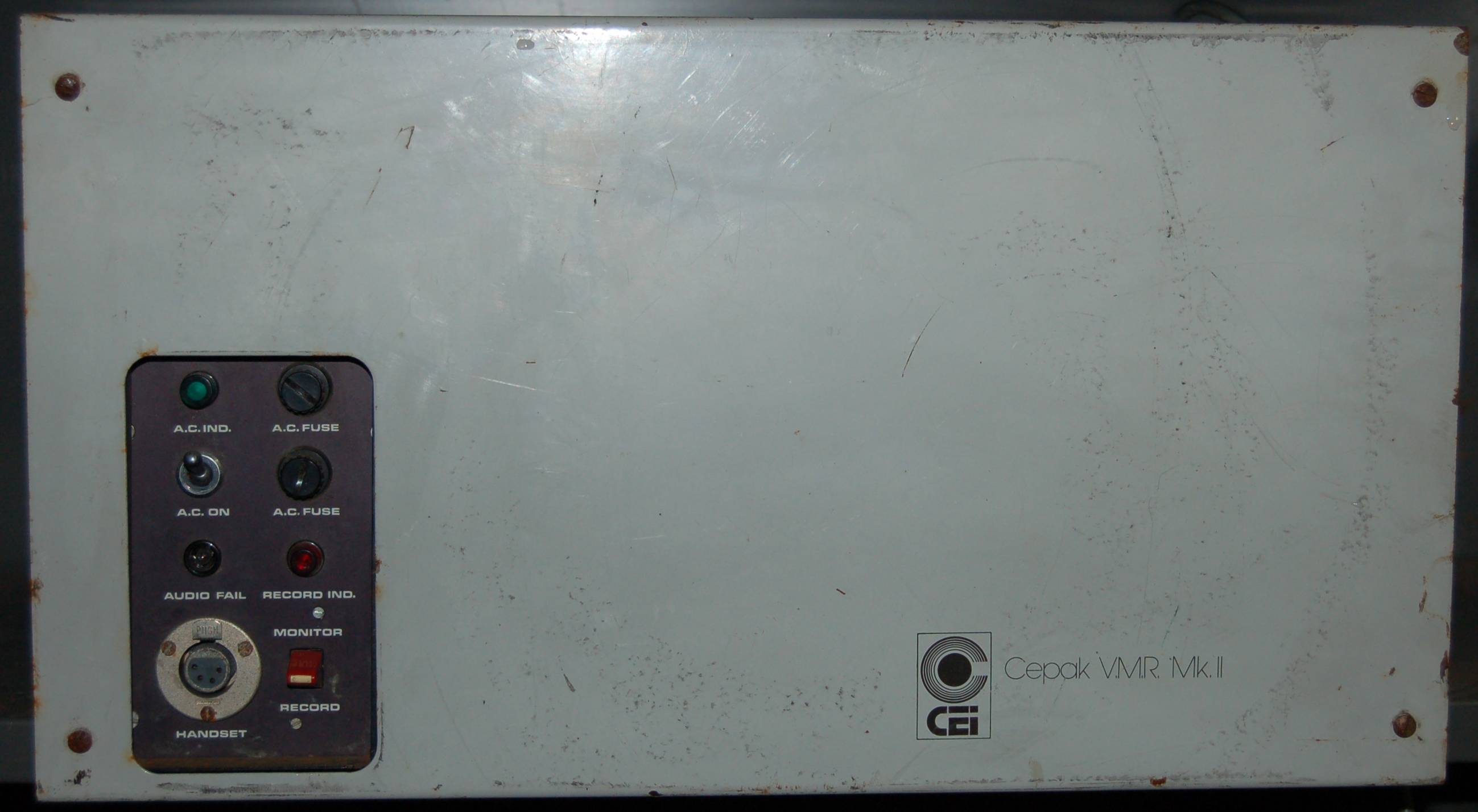

This first image is with the front cover on.
- VARIABLE MESSAGE REPEATER VMR MkII -
With the front cover removed this image shows most of the mechanical components.
This unit provides announcements of varying lengths over a telephone system, i.e. weather reports, sporting results, and travel information, etc.
The Mechanical Construction is for heavy duty operation. All bearings fitted with ball and needle races.
The Recording Medium is a Neoprene Band impregnated with Iron Oxide lubricated with oil to insure exceptionally long Replay/Record Head Life.
Variable Message Length is from 10 Seconds to 3 Minutes.
50 Cycle cue pulse at the end of the message insures automatic re-cycling resulting in a minimum of lost time.
Automatic Record Level Control with continuous Audio Monitoring.
Fully transistorised amplifier modules capable of remote operation.
Automatic erasure before re-recording plus Audio and machine fail alarm incorporated.
Until I found this unit I didn't know that CEI also made this product along with the 77 series tape machines.
